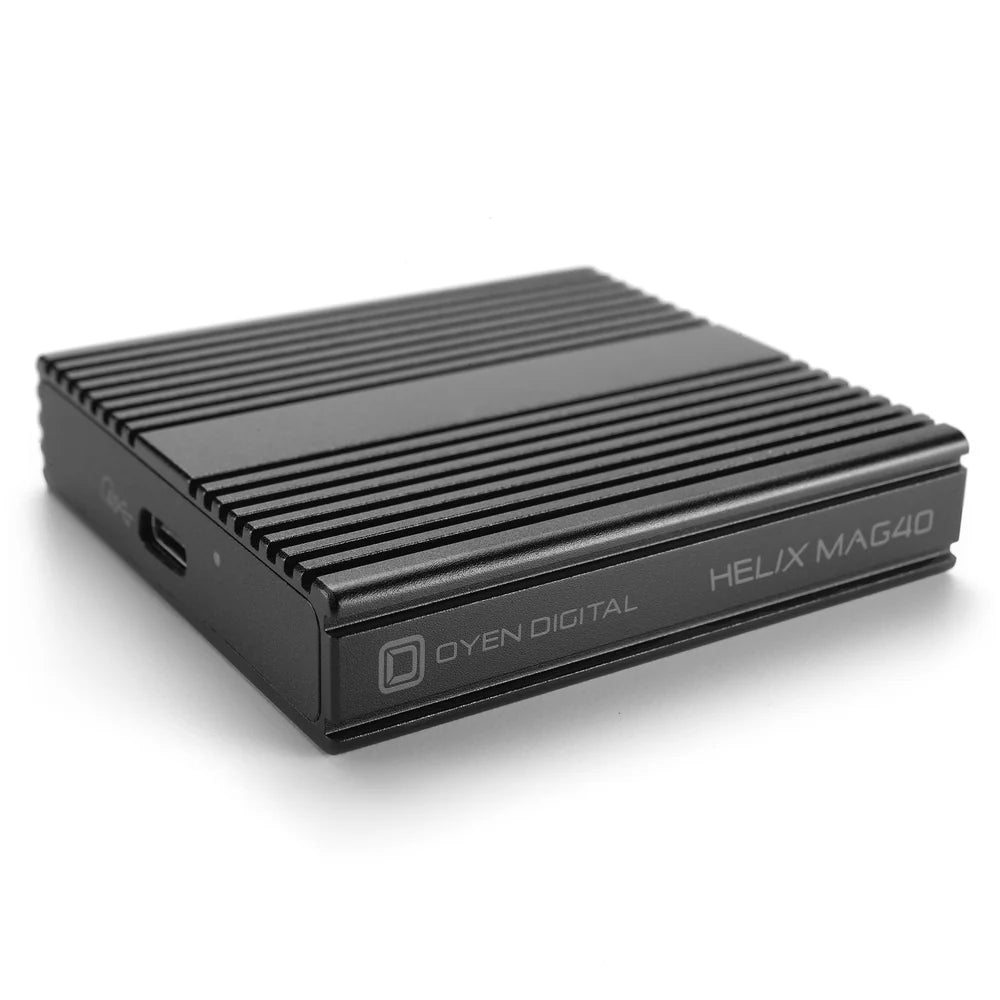

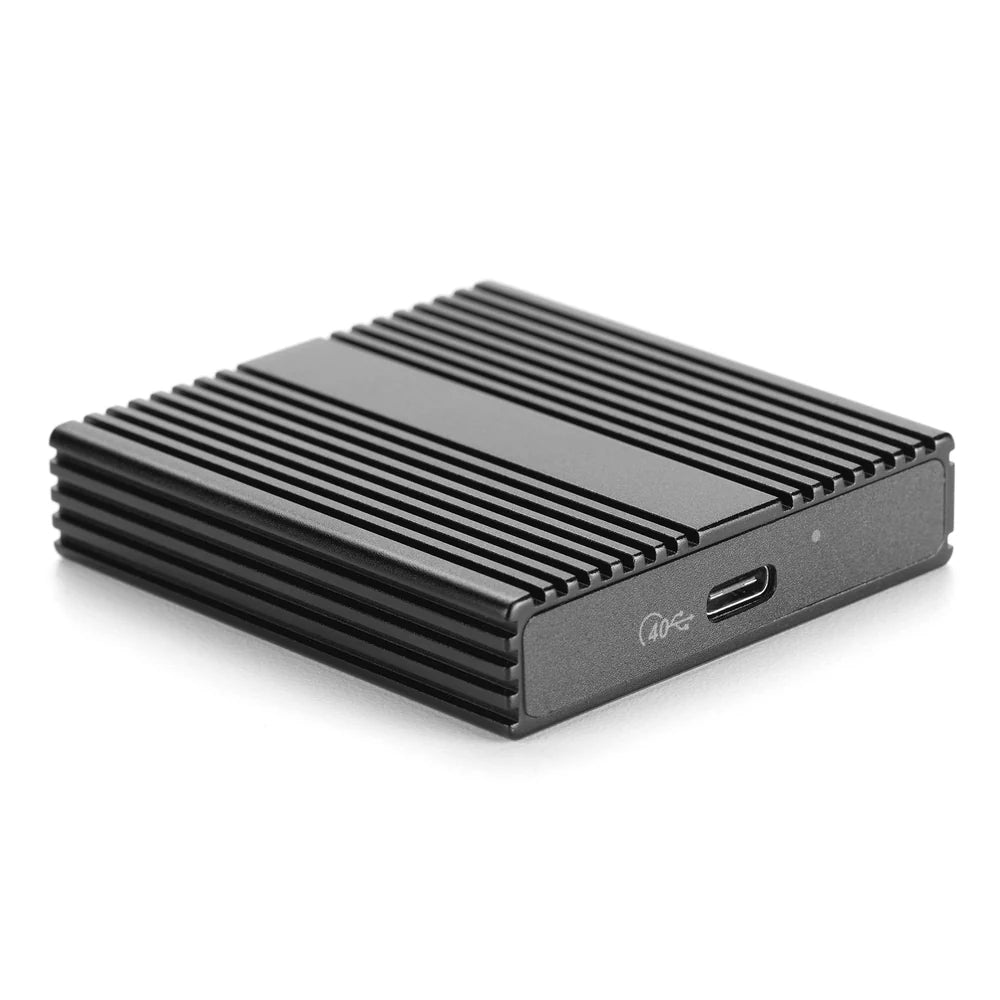

The OYEN DIGITAL Helix MAG40 combines high-speed portable storage with a compact magnetic design made for mobile creative workflows. Its MagSafe-compatible enclosure attaches securely to compatible iPhones, keeping up to 4TB of external storage close at hand while recording video, capturing photos, or transferring large projects.
A USB4 40Gb/s connection delivers speeds up to 2,800 MB/s, while the solid aluminum enclosure helps protect the SSD and dissipate heat without a fan. The Helix MAG40 can record supported 4K ProRes formats directly from compatible iPhones, helping preserve the phone’s internal storage during extended shoots.
It also works as a compact portable SSD for USB-C and Thunderbolt-equipped Mac and Windows computers.
Key features
- Transfer speeds up to 2,800 MB/s
- USB4 40Gb/s USB-C connection

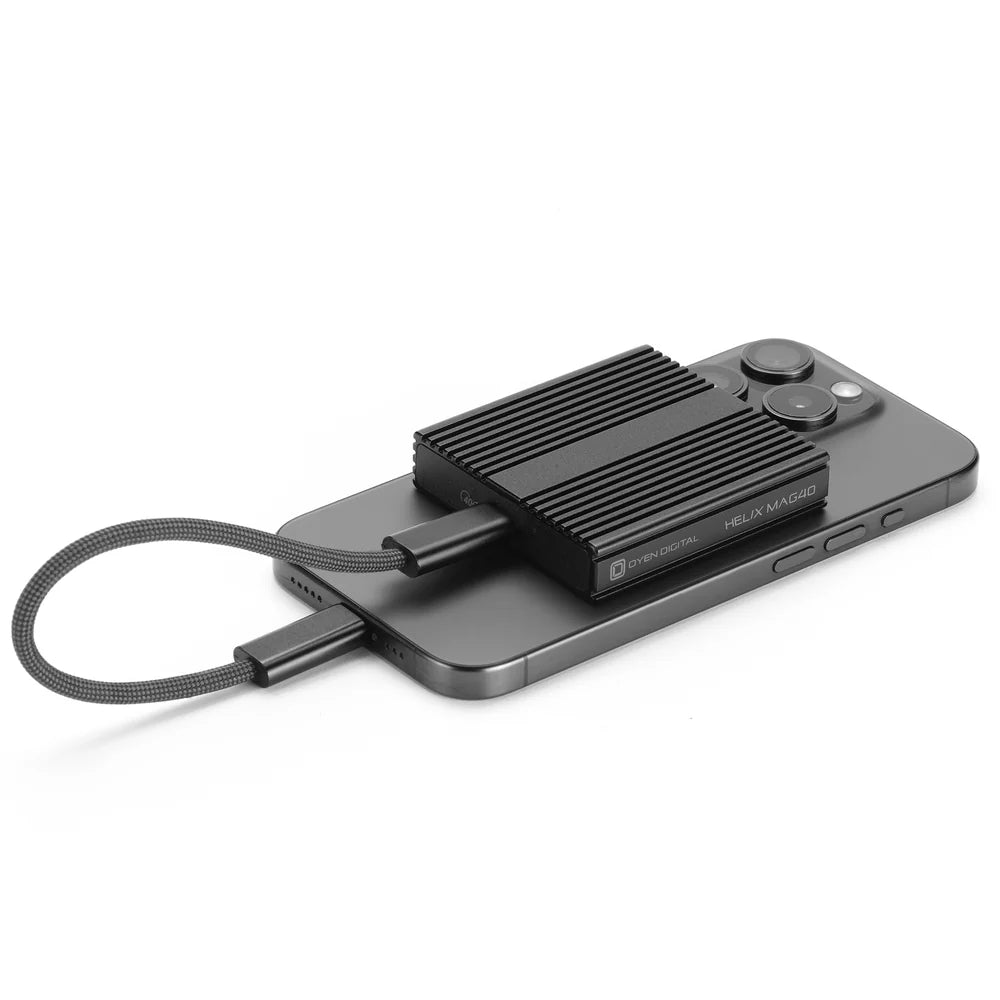

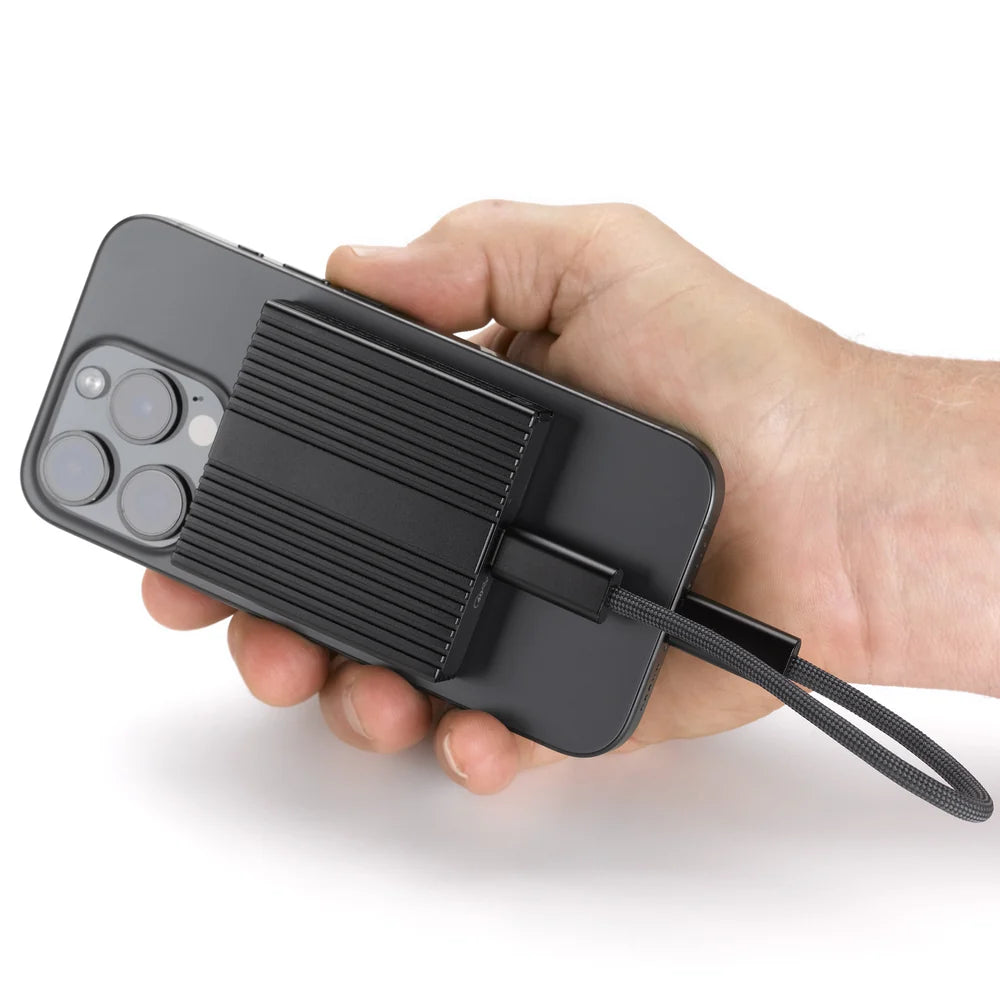

- MagSafe-compatible magnetic mounting
- Supports direct 4K ProRes recording on compatible iPhones
- Compact, pocket-friendly design
- Solid aluminum enclosure
- High-quality 3D TLC NAND flash
- Bus powered with no external power supply required
- Compatible with iPhone 15 and newer USB-C models
- Compatible with USB-C and Thunderbolt-equipped computers
- Includes 1TB of AvastorX cloud storage for one year
- Available in 2TB and 4TB capacities
Connection compatibility
- USB4 40Gb/s
- Thunderbolt 5
- Thunderbolt 4
- Thunderbolt 3
- Compatible USB-C connections
- USB-C-equipped iPhone 15 and newer models
Maximum performance requires a compatible USB4 or Thunderbolt connection. Performance may be lower when connected through earlier USB standards.
Magnetic attachment requires a MagSafe-compatible iPhone or case. Other USB-C devices can use the SSD without magnetic attachment.
Formatting compatibility
The Helix MAG40 is preformatted HFS+ for Mac. It can be reformatted for Windows or cross-platform use if desired.
Reformatting erases all information stored on the drive. Back up any required files before changing the format.
Specifications
- Drive type: Portable NVMe solid-state drive
- Interface: USB4 40Gb/s
- Connector: USB-C
- Maximum speed: Up to 2,800 MB/s
- Flash memory: 3D TLC NAND
- Controller: PS2251-21
- Factory format: HFS+
- Operating temperature: 32° to 158°F
- Dimensions: 2.36 × 2.5 × 0.54 inches
- Drive weight: 4 oz
- Color: Black
- Certifications: CE and FCC

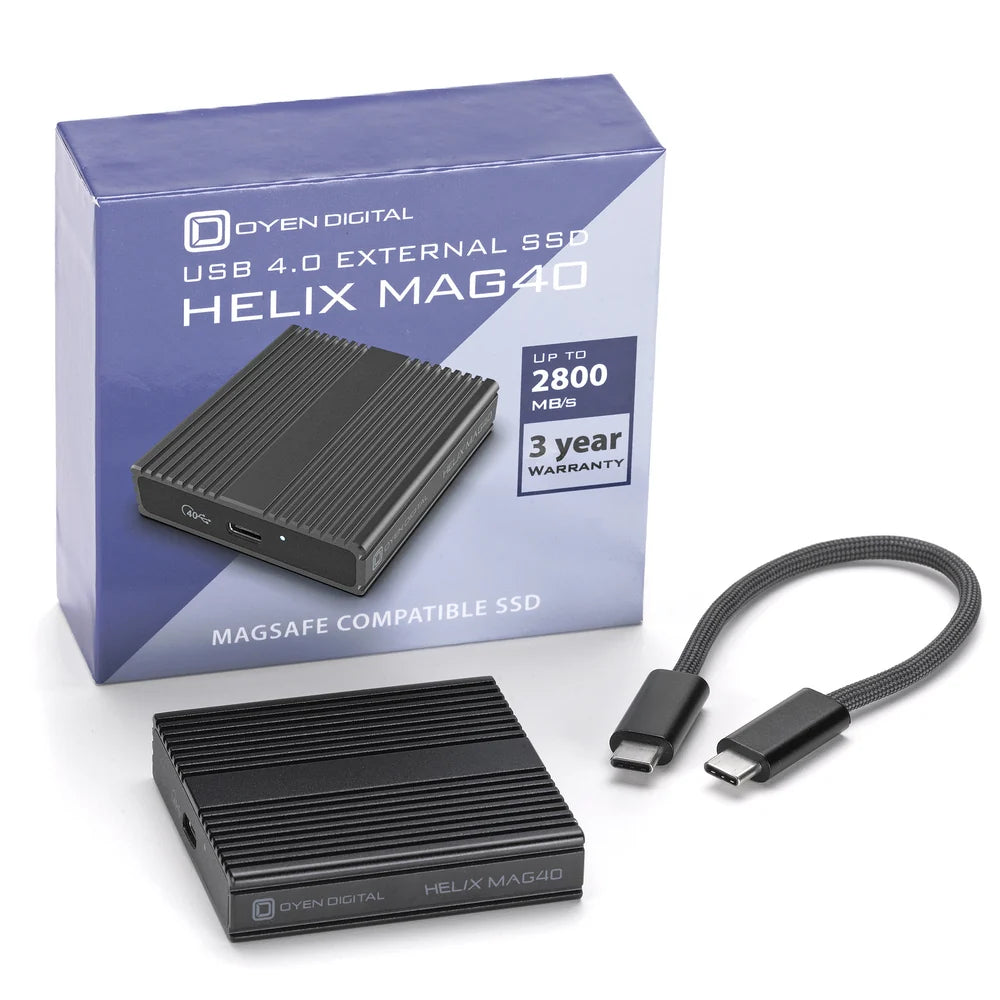

Included items
- OYEN DIGITAL Helix MAG40 Portable SSD
- Short USB-C to USB-C cable
- Quick-start guide
- One year of 1TB AvastorX cloud storage
Warranty
Three-year OYEN DIGITAL warranty with USA-based support
