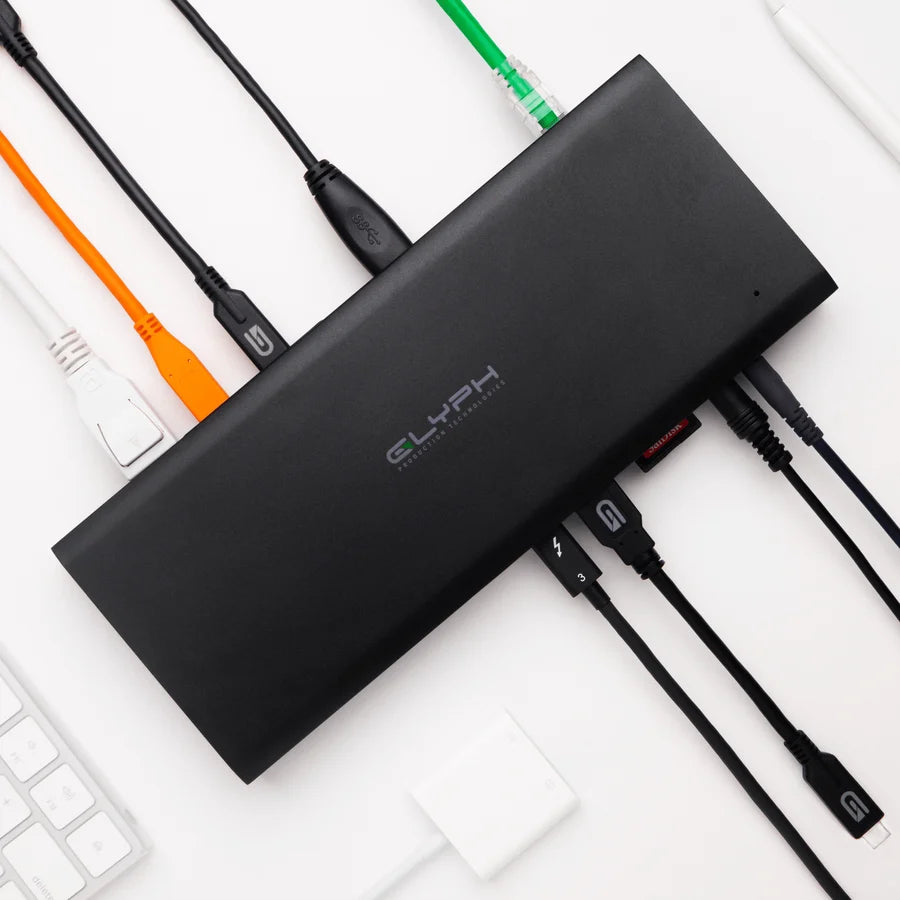

The GLYPH Thunderbolt 3 Dock turns a single Thunderbolt connection into a complete desktop hub for displays, networking, memory cards, audio, and USB peripherals. Connect your laptop with one cable while the dock provides up to 87W of charging power.

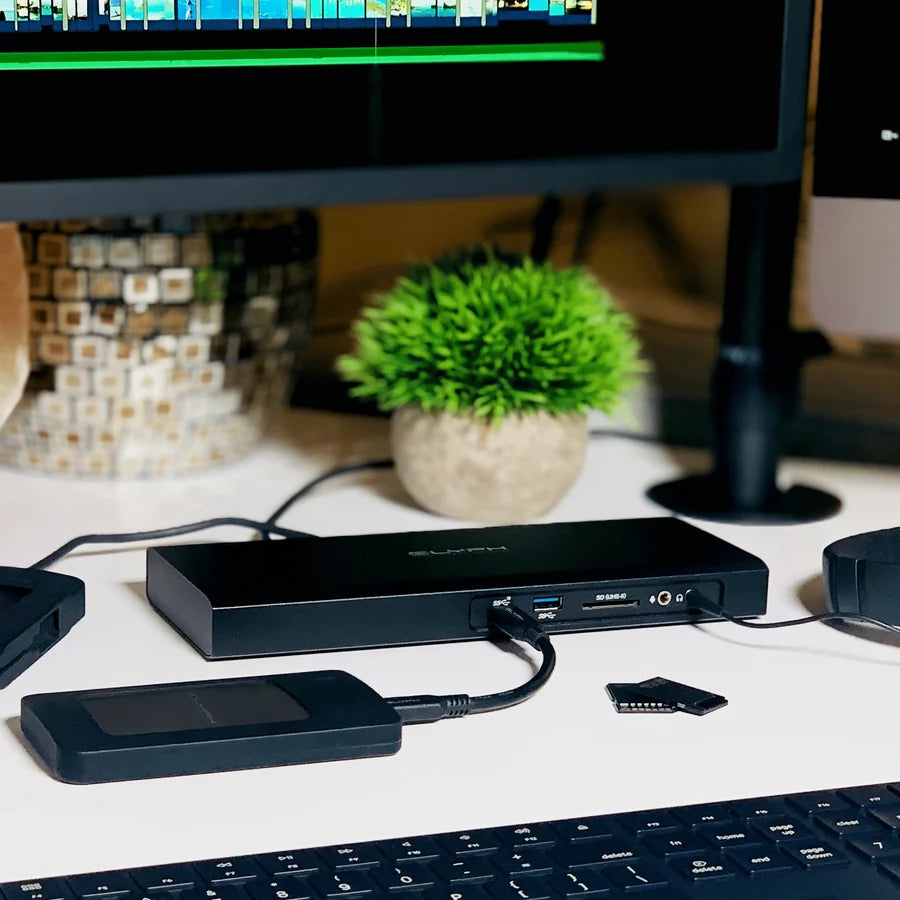

Designed for recording, photography, and video workstations, it supports dual 4K displays, fast UHS-II SD card transfers, Gigabit Ethernet, and Thunderbolt daisy-chaining in a streamlined desktop enclosure.
Key features
- Thunderbolt 3 connectivity with up to 40Gb/s bandwidth
- Charges compatible laptops with up to 87W of power
- Supports one 5K display at 60Hz
- Supports two 4K displays at 60Hz
- Thunderbolt daisy-chain support
- UHS-II SD card reader with speeds up to 270 MB/s
- Gigabit Ethernet
- USB-C and USB-A peripheral connections
- Dedicated microphone input and headphone output
- External power supply for reliable desktop operation

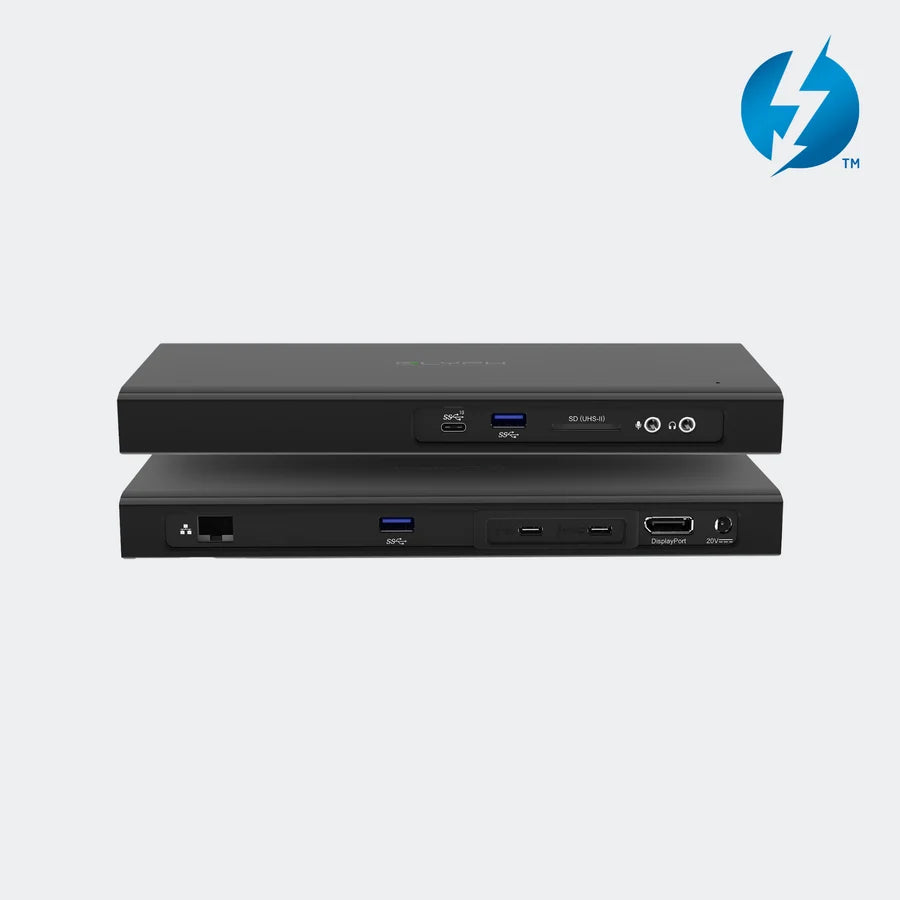

Connections

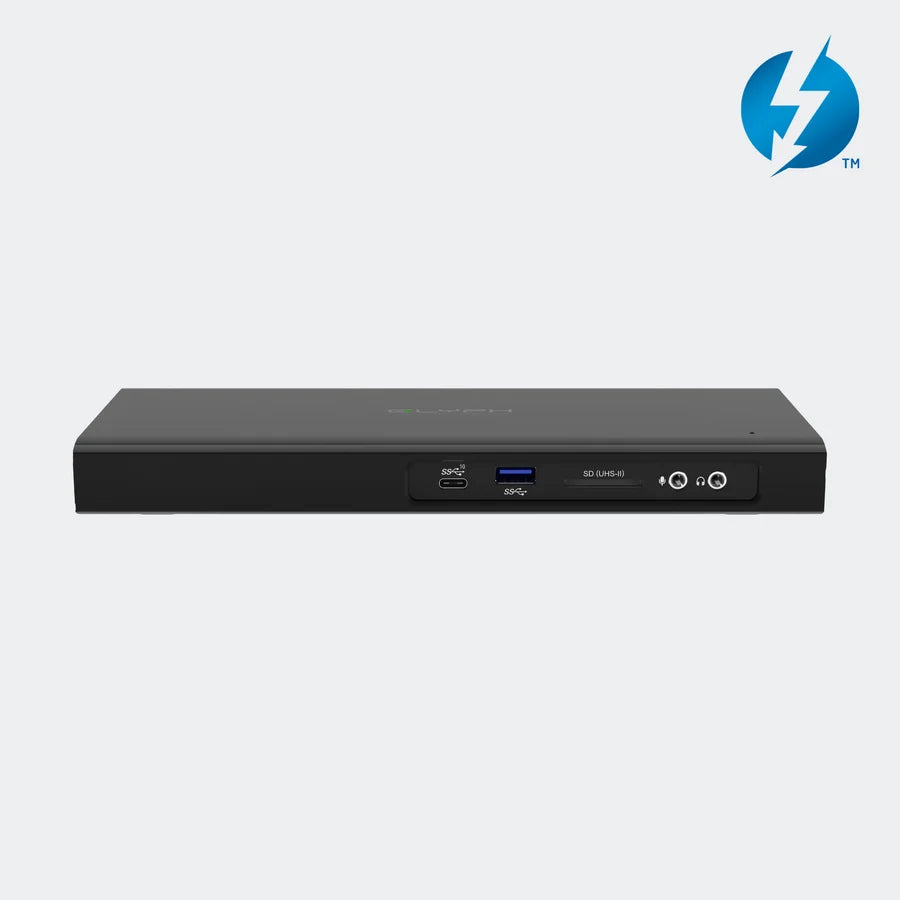

Front:
- One USB-C 10Gb/s port
- One USB-A 5Gb/s port
- UHS-II SD card reader
- 3.5 mm microphone input
- 3.5 mm headphone output

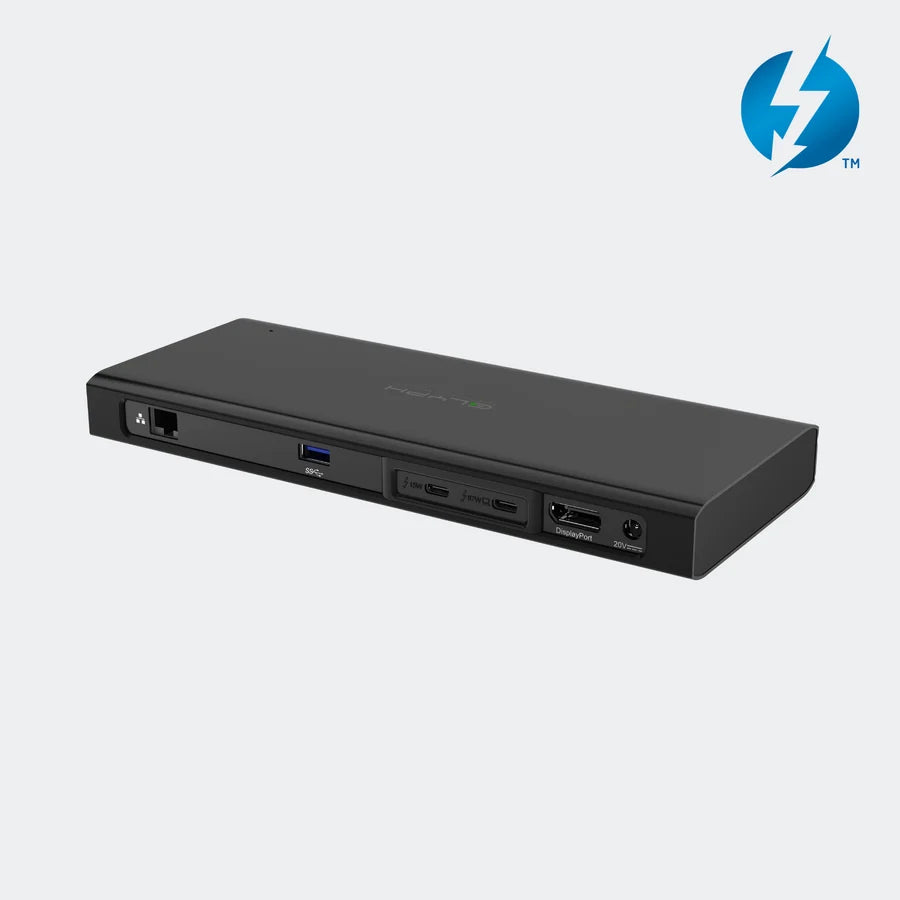

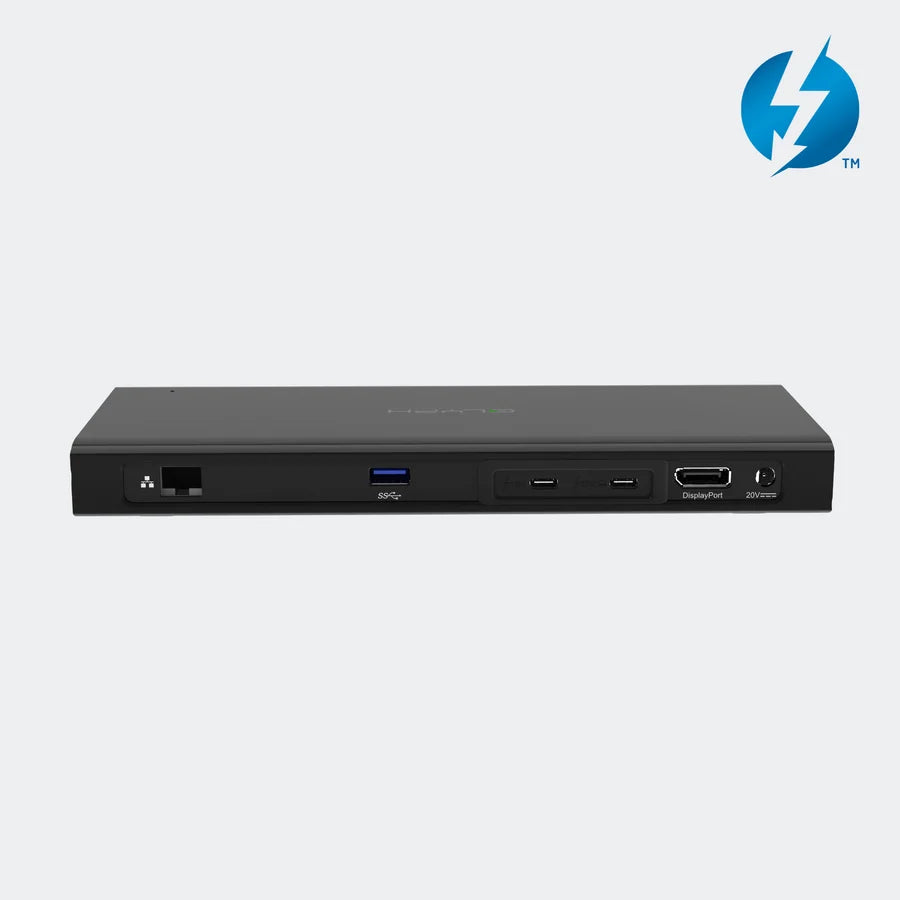

Rear:
- Gigabit Ethernet
- One USB-A 5Gb/s port
- Two Thunderbolt 3 ports
- DisplayPort output
- External power connection
Included
- GLYPH Thunderbolt 3 Dock
- Thunderbolt 3 40Gb/s cable
- External power supply
Specifications
- Host interface: Thunderbolt 3
- Maximum interface bandwidth: 40Gb/s
- Laptop charging: Up to 87W
- Single-display support: Up to 5K at 60Hz
- Dual-display support: Up to 4K at 60Hz
- SD card reader: UHS-II, up to 270 MB/s
- Networking: Gigabit Ethernet
- Dock dimensions: 9.4 × 3.75 × 0.9 inches
- Shopify shipping weight: Approximately 4.2 lb. / 1.91 kg
Warranty
- Three years of hardware coverage
- One year of advance replacement
