The GLYPH StudioRAID is a dual-drive hardware RAID system with USB 3.0, FireWire 800, and eSATA connectivity. It is a practical storage solution for recording studios and production environments that need compatibility with both current computers and legacy equipment.
Two enterprise-class 7,200 RPM hard drives deliver transfer speeds up to 360 MB/s. Choose RAID 0 for maximum performance and capacity, RAID 1 for mirrored redundancy, or configure the drives as JBOD or SPAN.
StudioRAID also features an internal universal power supply, eliminating the need for an external power brick.
Key features
- Dual-drive desktop RAID
- Transfer speeds up to 360 MB/s
- USB 3.0, FireWire 800, and eSATA connectivity
- Hardware RAID requires no management software
- RAID 0, RAID 1, JBOD, and SPAN modes
- Enterprise-class 7,200 RPM hard drives
- Internal universal power supply
- Temperature-controlled cooling fan
- Preformatted for macOS
- Compatible with Windows after reformatting
- Available in capacities up to 32TB
RAID modes
- RAID 0: Combines both drives for maximum capacity and performance
- RAID 1: Mirrors data across both drives for redundancy
- JBOD: Makes each internal drive independently accessible
- SPAN: Combines both drives into one continuous storage volume
RAID 1 protects against the failure of one internal drive but is not a substitute for maintaining a separate backup.

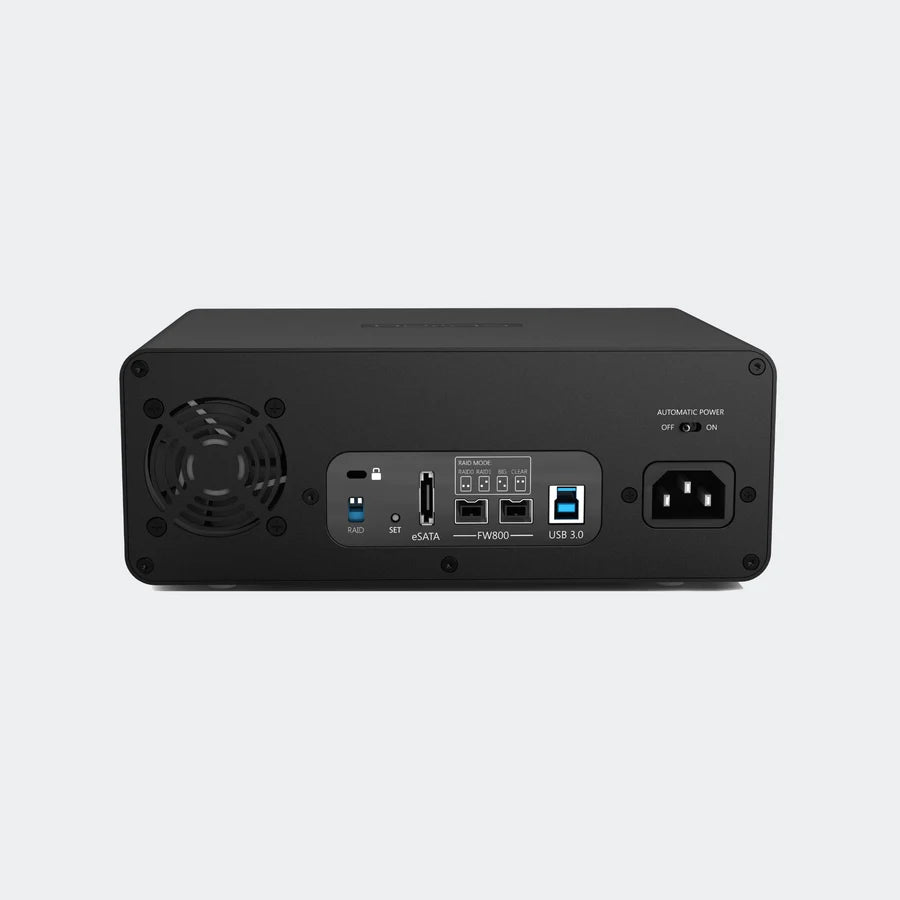

Connections
- One USB 3.0 port
- Two FireWire 800 ports
- One eSATA port
- IEC power connection
Included
- GLYPH StudioRAID desktop drive
- USB 3.0 cable
- FireWire 800 cable
- IEC power cable
Specifications
- Storage type: Dual 7,200 RPM hard drives
- Interfaces: USB 3.0, FireWire 800 and eSATA
- Maximum transfer speed: Up to 360 MB/s
- RAID modes: RAID 0, RAID 1, JBOD and SPAN
- Cooling: Temperature-controlled fan
- Power: Internal universal power supply
- Input voltage: 100–240V, 50/60Hz
- Mac compatibility: Preformatted for macOS
- Windows compatibility: Compatible after reformatting
- Drive dimensions: 6.5 × 8.6 × 2.7 inches
Warranty
GLYPH 3-2-1 warranty coverage includes:
- Three years of hardware coverage, including cables
- Two years of Level-1 data recovery
- One year of advance replacement
