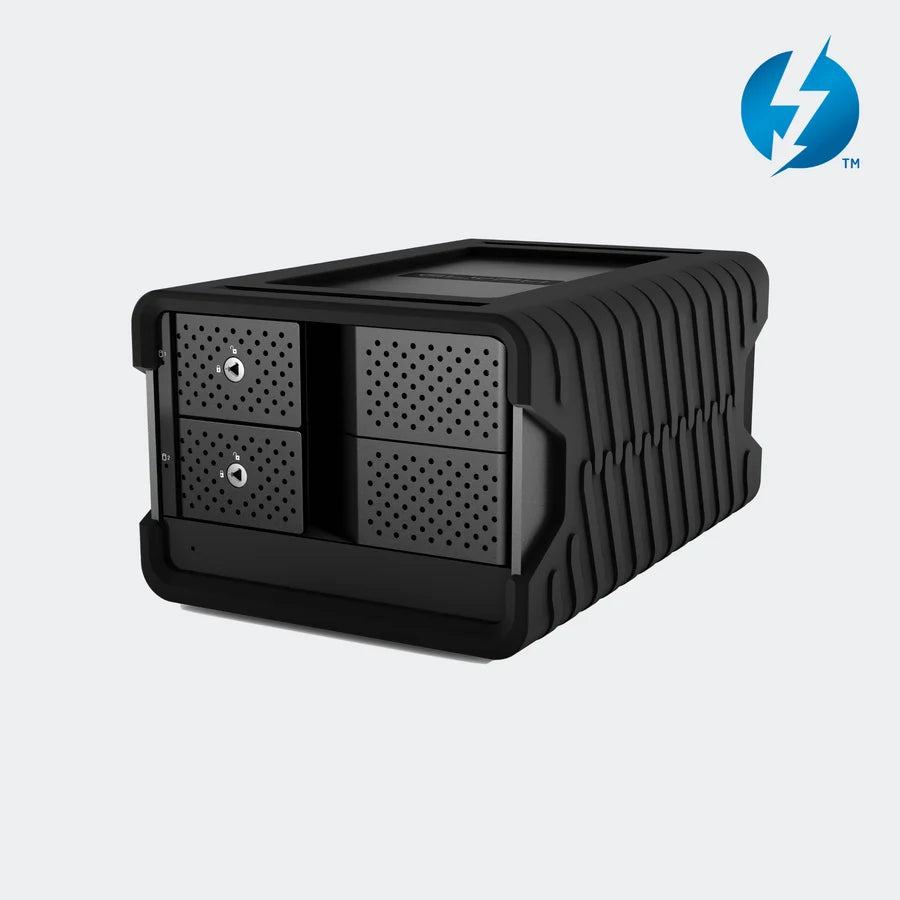

The GLYPH Blackbox PRO RAID combines two 7,200 RPM hard drives with hardware RAID and Thunderbolt 3 connectivity. Built for recording sessions, video production, photography, and large media archives, it delivers transfer speeds up to 550 MB/s and capacities up to 60TB.

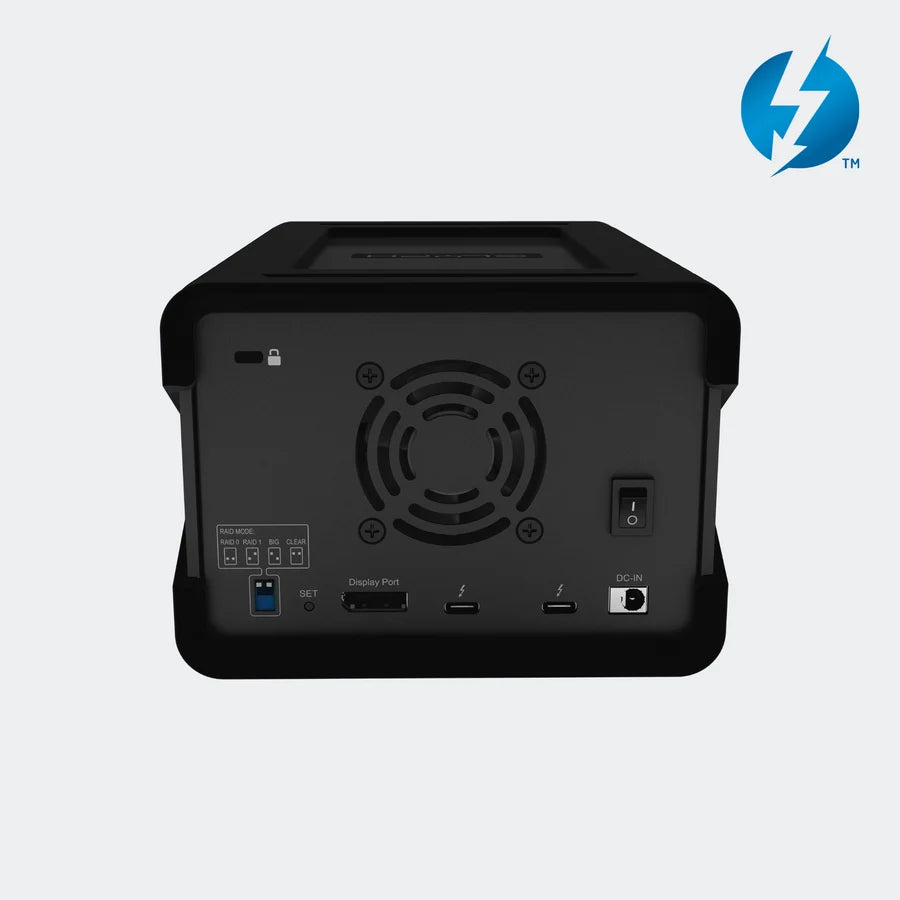

Choose RAID 0 for maximum performance and capacity, RAID 1 for mirrored redundancy, or configure the drives as JBOD or SPAN. Dual Thunderbolt 3 ports support daisy-chaining, while the built-in DisplayPort connection can drive a compatible 4K display.

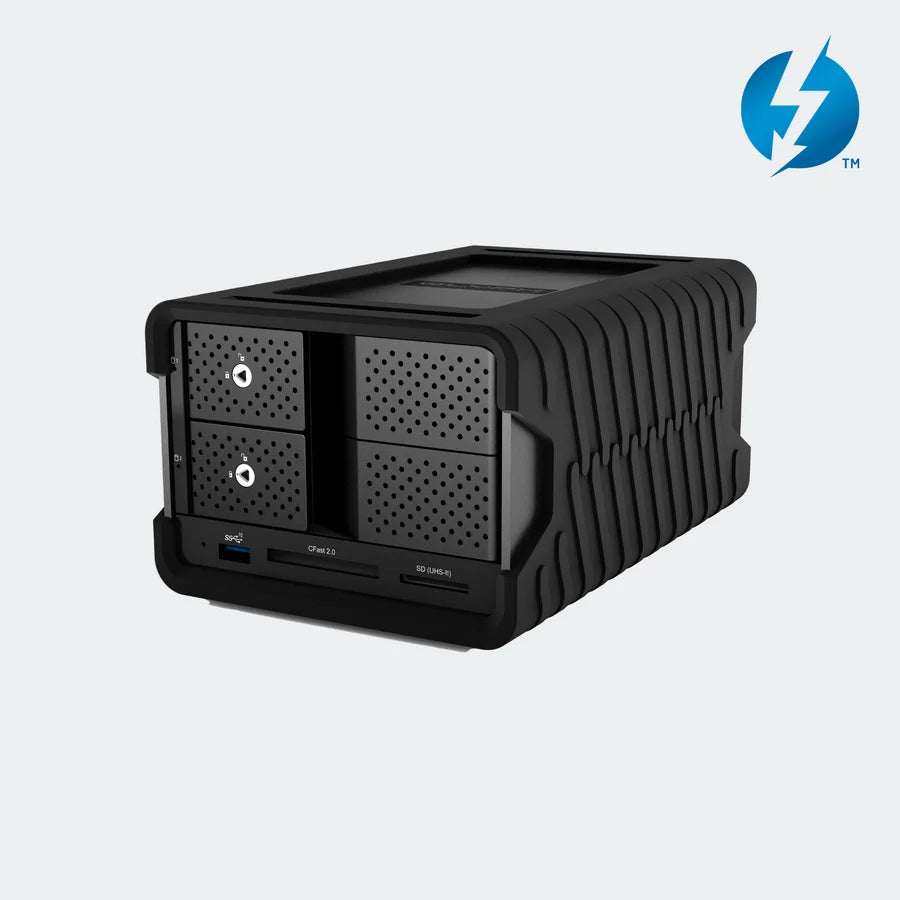

Choose the standard front panel or add the optional media hub with USB-A, CFast 2.0, and UHS-II SD connections.
Key features
- Dual-drive desktop RAID
- Transfer speeds up to 550 MB/s
- Two Thunderbolt 3 ports with 40Gb/s bandwidth

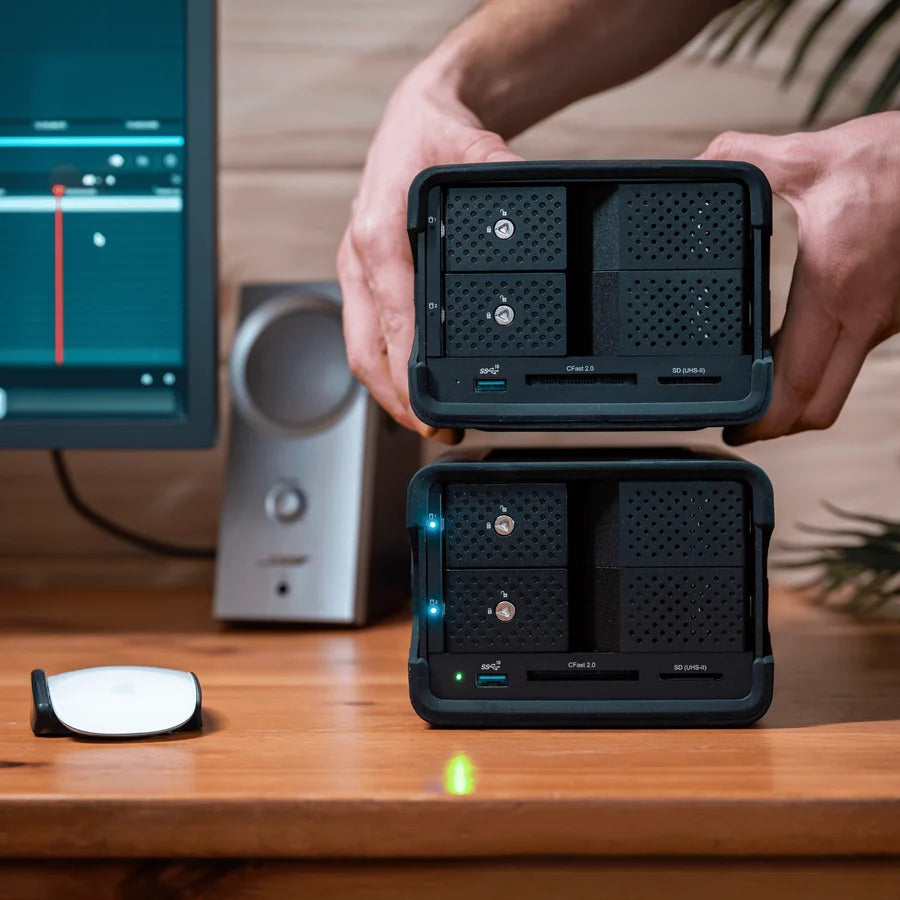

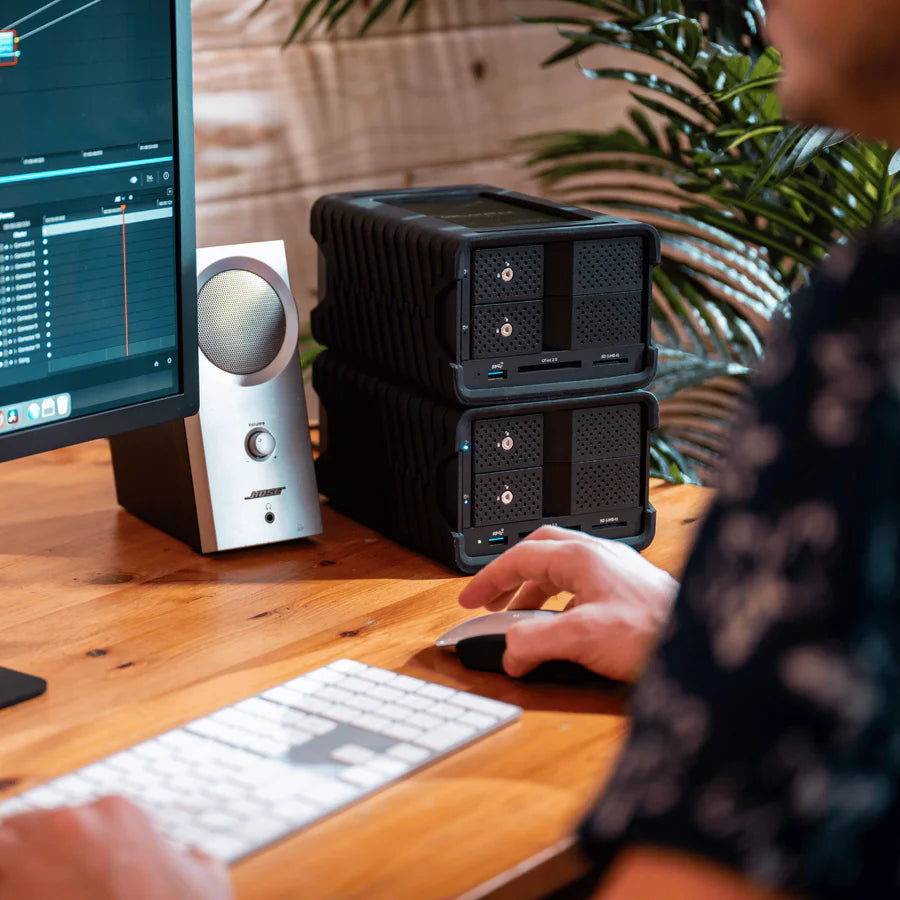

- Thunderbolt daisy-chaining for up to five additional devices
- Built-in DisplayPort connection
- Supports a compatible 4K display
- Hardware RAID 0, RAID 1, JBOD, and SPAN
- 7,200 RPM enterprise-class hard drives
- Intelligent cooling fan
- Rugged removable protective cover
- Optional USB and card-reader hub
- Preformatted for macOS
- Compatible with Windows after reformatting
RAID modes
- RAID 0: Combines both drives for maximum capacity and performance
- RAID 1: Mirrors data across both drives for redundancy
- JBOD: Makes each internal drive independently accessible
- SPAN: Combines both drives into one continuous storage volume
RAID 1 protects against the failure of one internal drive but is not a substitute for maintaining a separate backup.
Optional front hub
Models equipped with the front hub include:

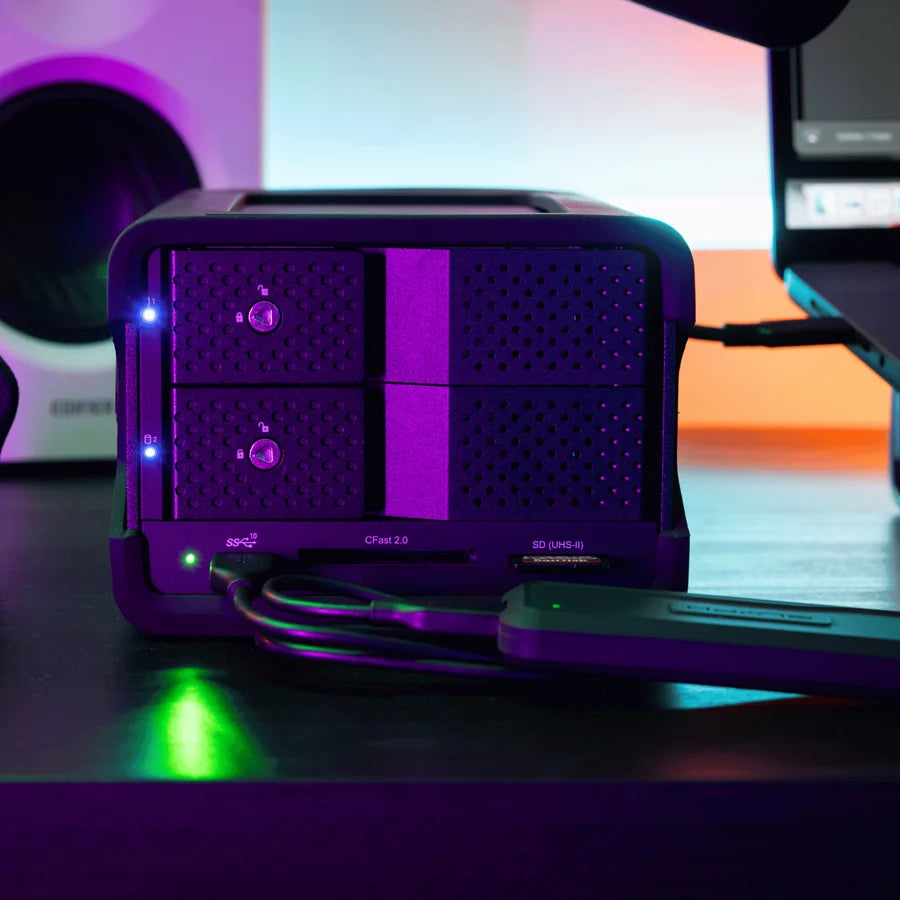

- One USB-A 10Gb/s port
- One CFast 2.0 card reader

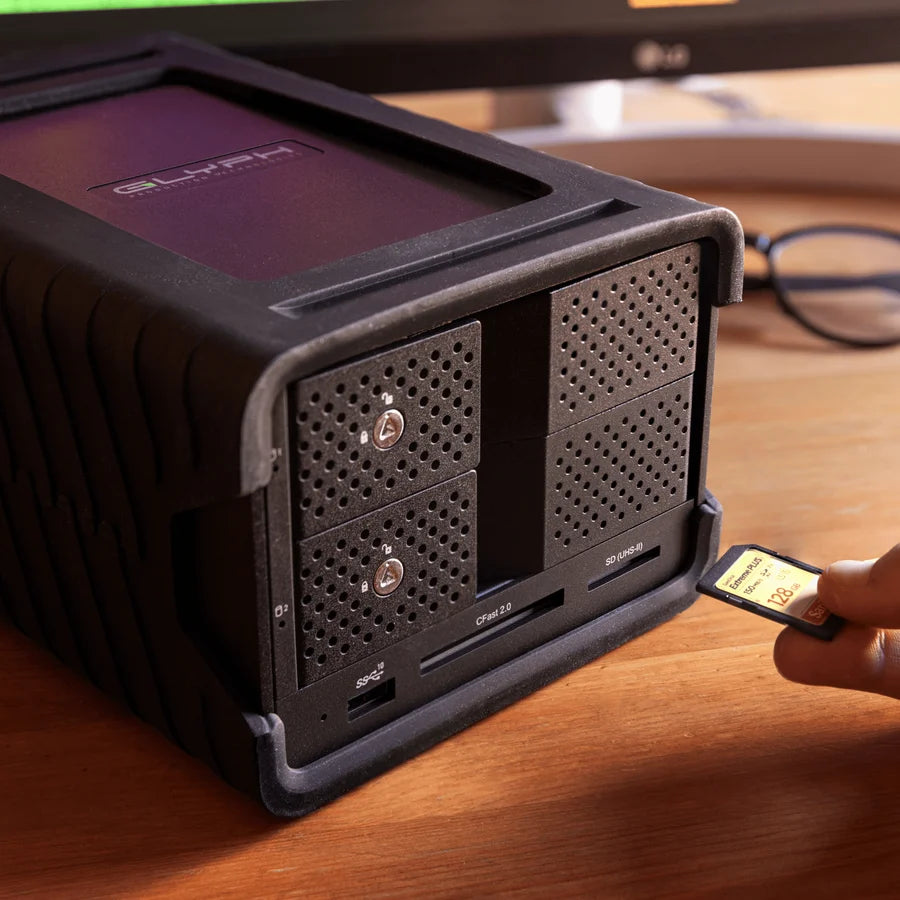

- One UHS-II SD card reader
Included
- GLYPH Blackbox PRO RAID desktop drive
- Thunderbolt 3 cable
- Rugged removable cover
- External power supply
Specifications
- Storage type: Dual 7,200 RPM hard drives
- Host interface: Thunderbolt 3
- Thunderbolt ports: Two
- Maximum interface bandwidth: 40Gb/s
- Maximum transfer speed: Up to 550 MB/s
- Display connection: DisplayPort
- RAID modes: RAID 0, RAID 1, JBOD and SPAN
- Cooling: Intelligent fan
- Power: External power supply
- Mac compatibility: Preformatted for macOS
- Windows compatibility: Compatible after reformatting
- Drive dimensions: 8.25 × 5.5 × 4.25 inches
Warranty
GLYPH 3-2-1 warranty coverage includes:
- Three years of hardware coverage, including the cable
- Two years of Level-1 data recovery
- One year of advance replacement
