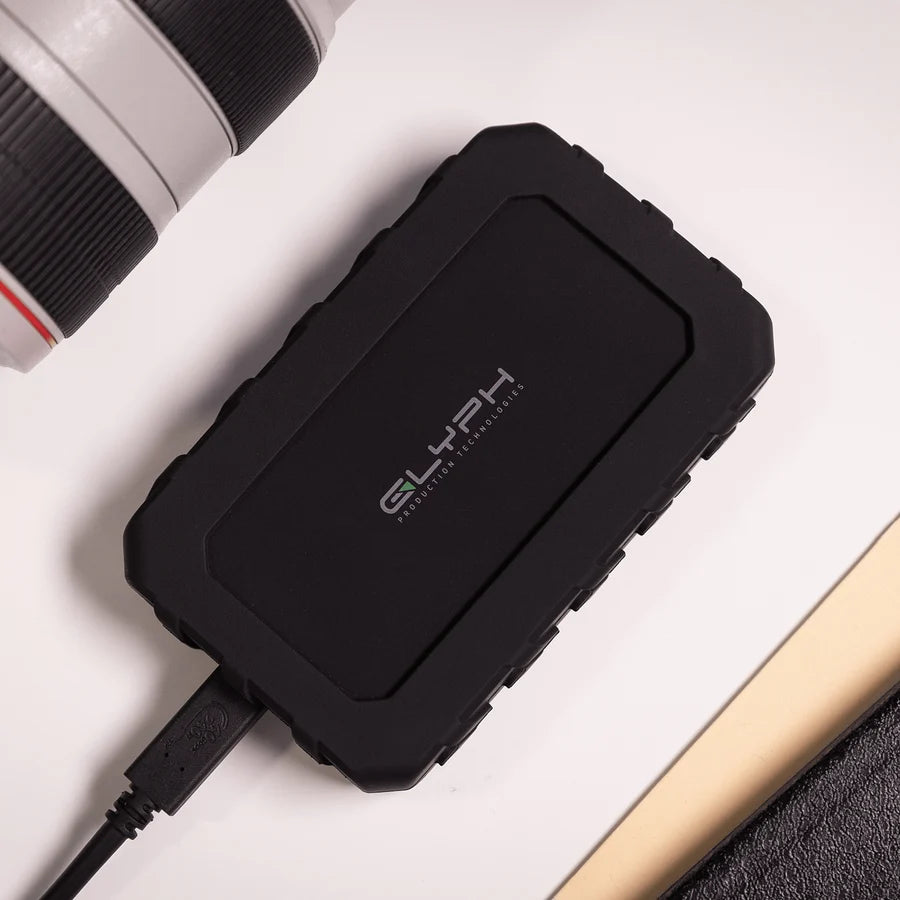

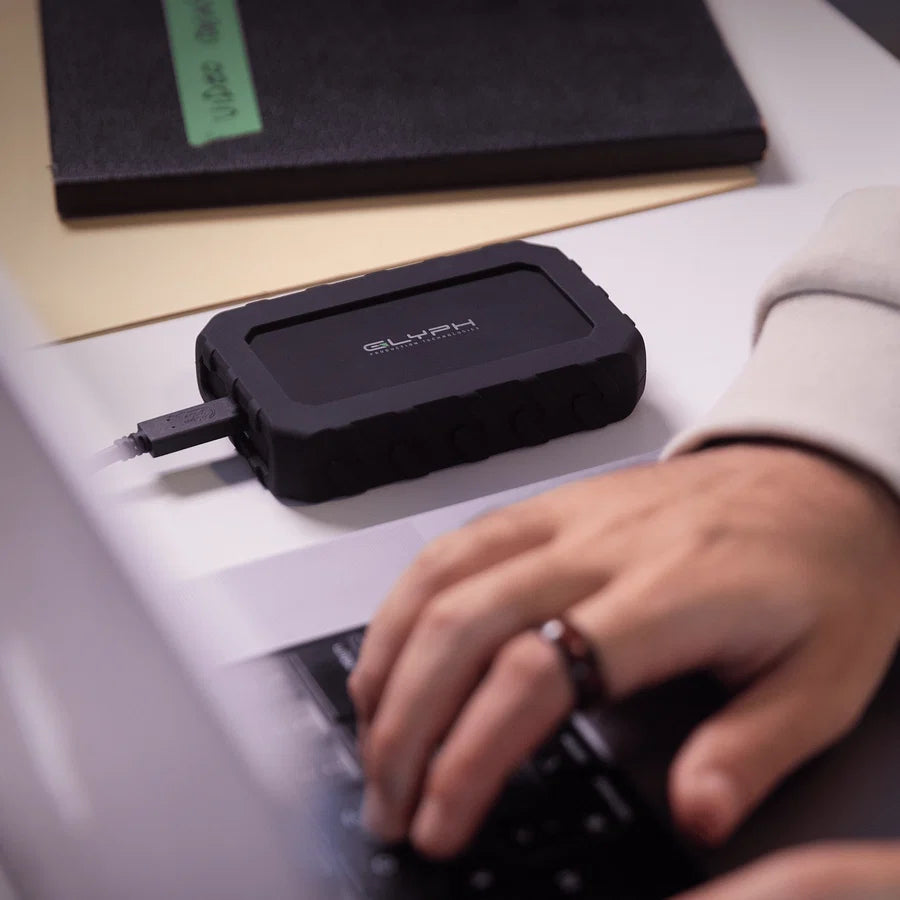

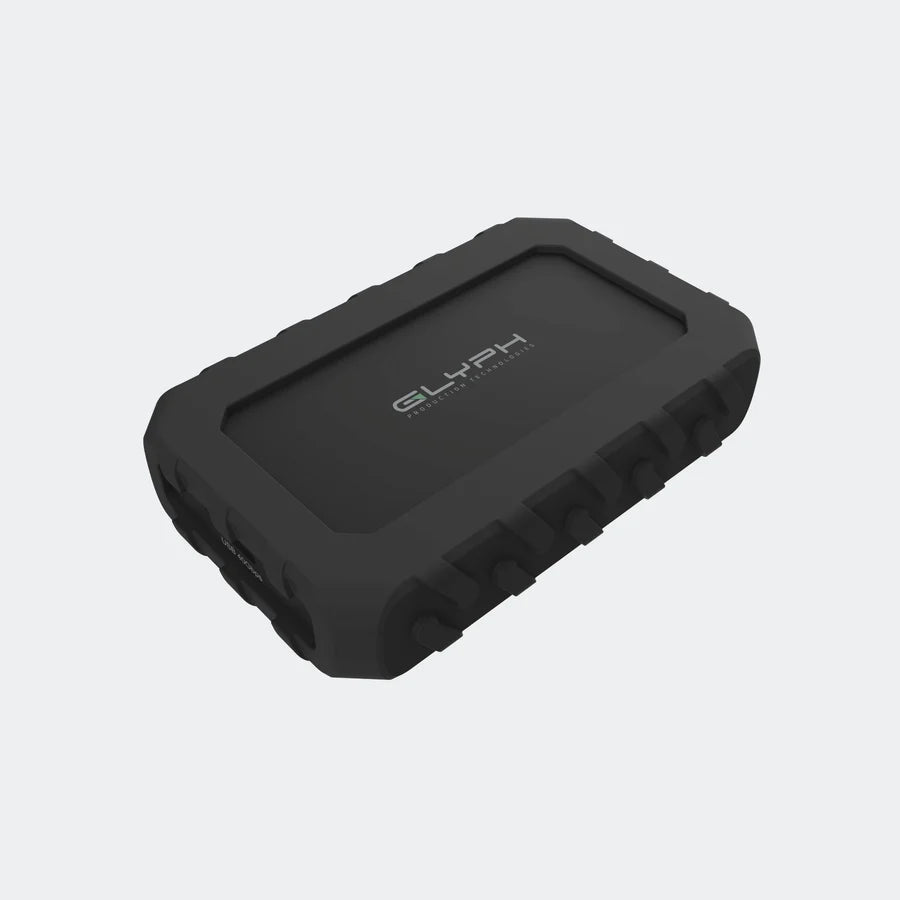

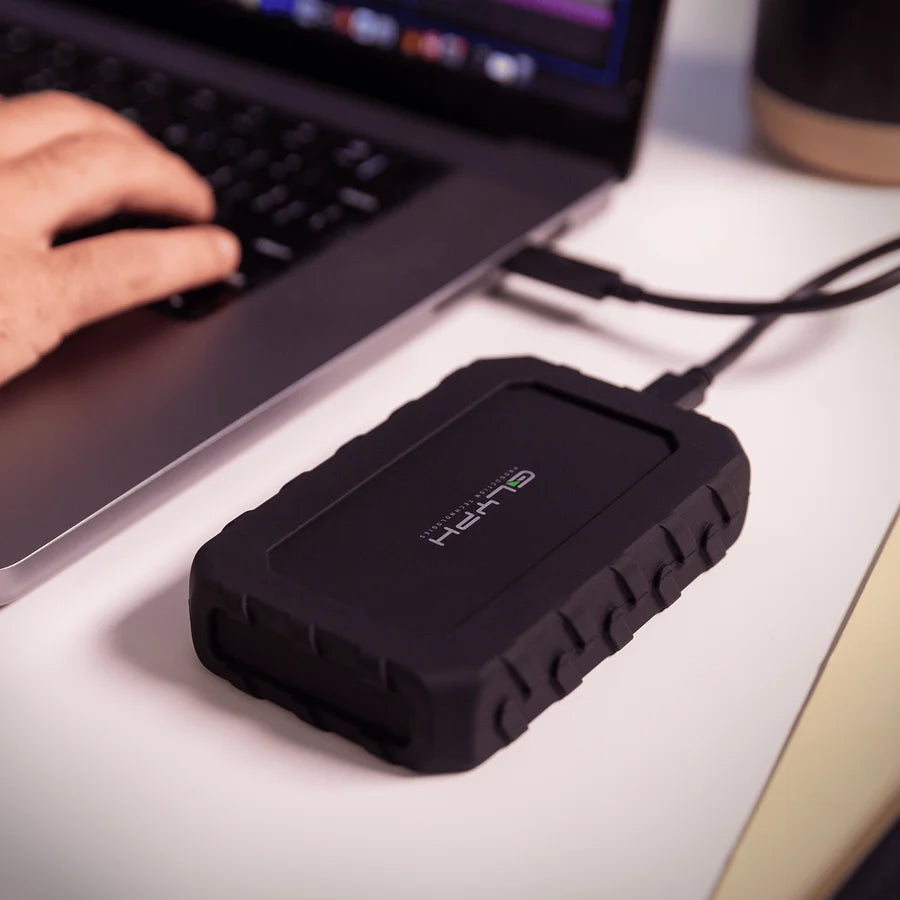

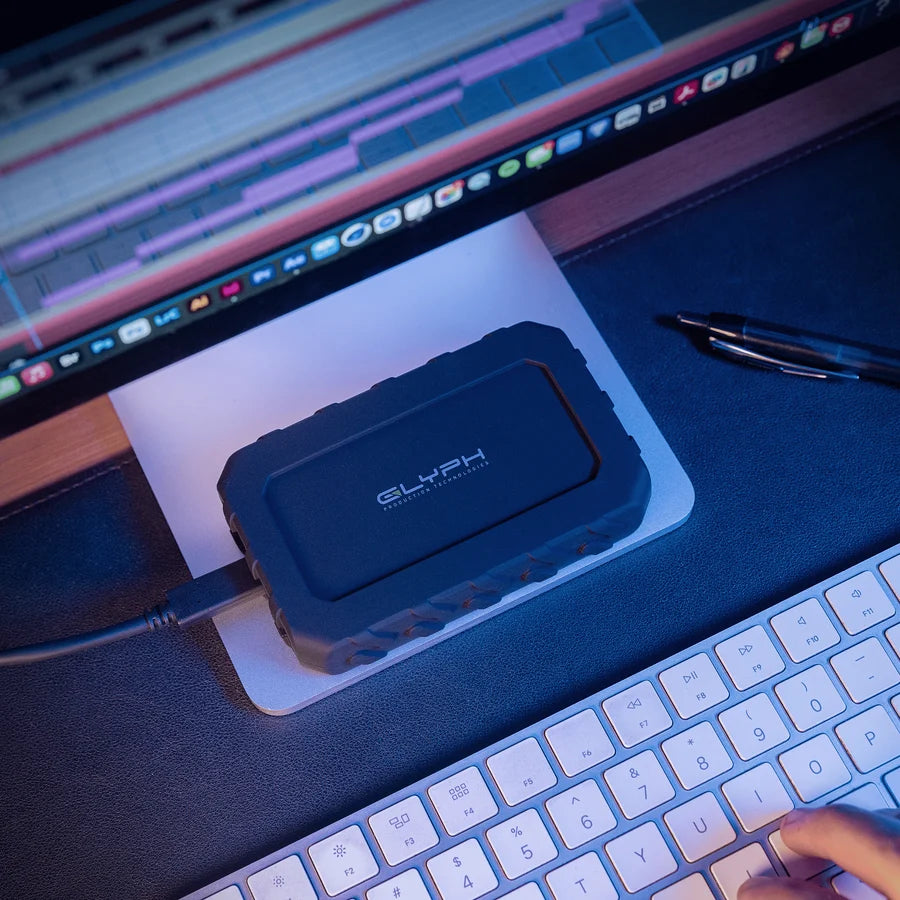

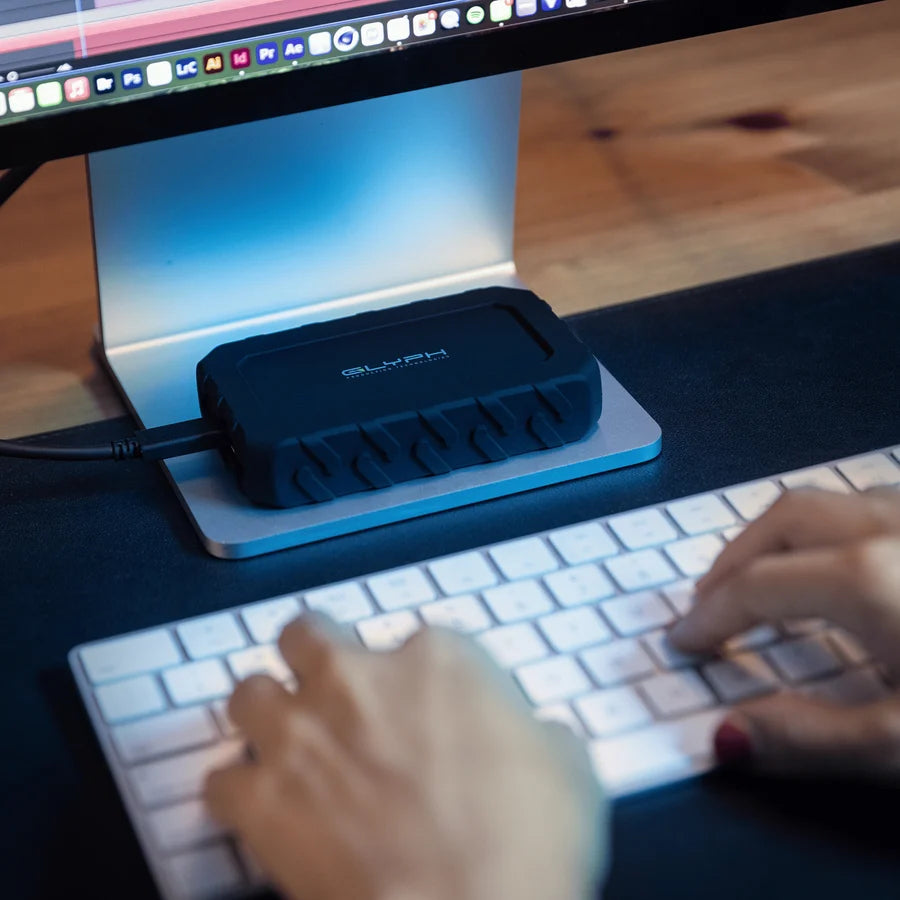

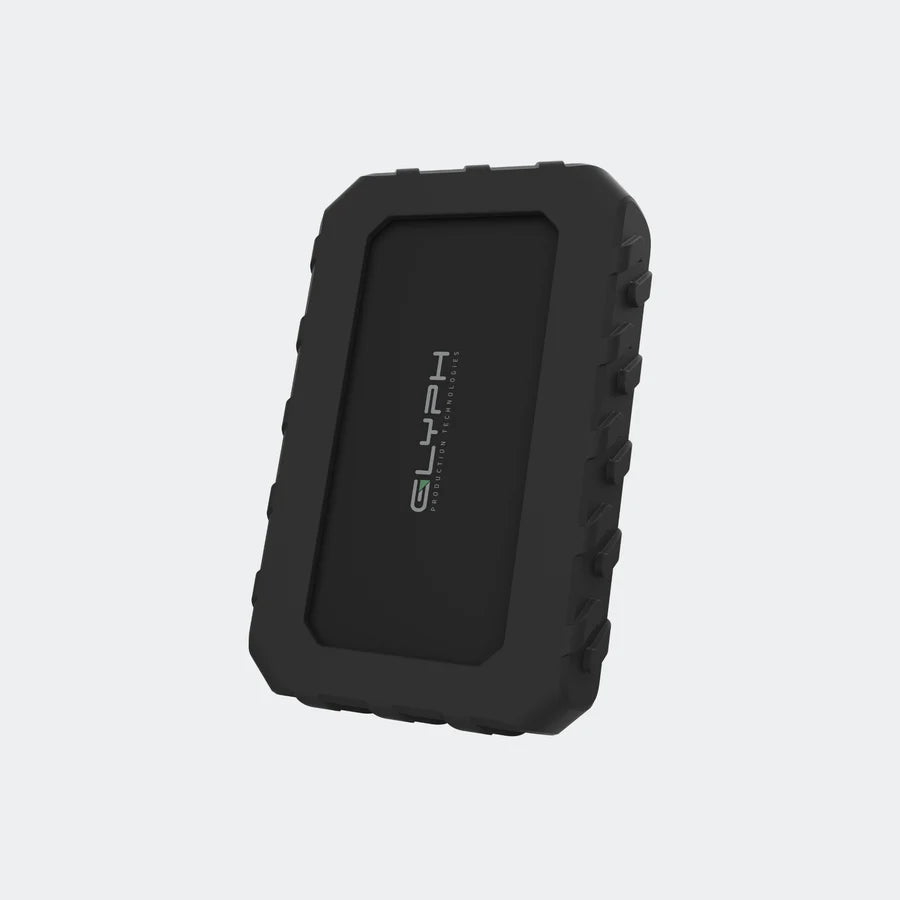

The GLYPH Atom EX40 delivers high-speed USB4 storage for recording sessions, high-resolution video, photography, and demanding production workflows. Its 40Gb/s USB4 interface supports read and write speeds up to 4,000 MB/s when connected to a compatible system.
A solid aluminum core and outer shell provide fanless heat dissipation during sustained transfers. The removable protective cover adds protection for mobile production, while bus-powered operation keeps the setup simple.
Key features
- Read and write speeds up to 4,000 MB/s
- USB4 connectivity with up to 40Gb/s bandwidth
- Compact, bus-powered design
- Solid aluminum core and outer enclosure
- Fanless passive heat dissipation
- Integrated drive-health monitoring
- Rugged removable protective cover
- MIL-STD-810F rated for shock, vibration, and dust resistance
- Compatible with USB and Thunderbolt-equipped computers
- Preformatted for macOS
- Compatible with Windows after reformatting
- Available in capacities up to 8TB
Connection compatibility
Maximum performance requires a compatible 40Gb/s USB4 connection. Atom EX40 can connect to compatible USB 3.0, USB 3.1, Thunderbolt 3, Thunderbolt 4, and Thunderbolt 5 systems, but actual transfer speeds depend on the computer, connection, and workload.
Included
- GLYPH Atom EX40 portable NVMe SSD
- 30 cm USB-C to USB-C cable
- Rugged removable protective cover
Specifications
- Drive type: NVMe solid-state drive
- Interface: USB4

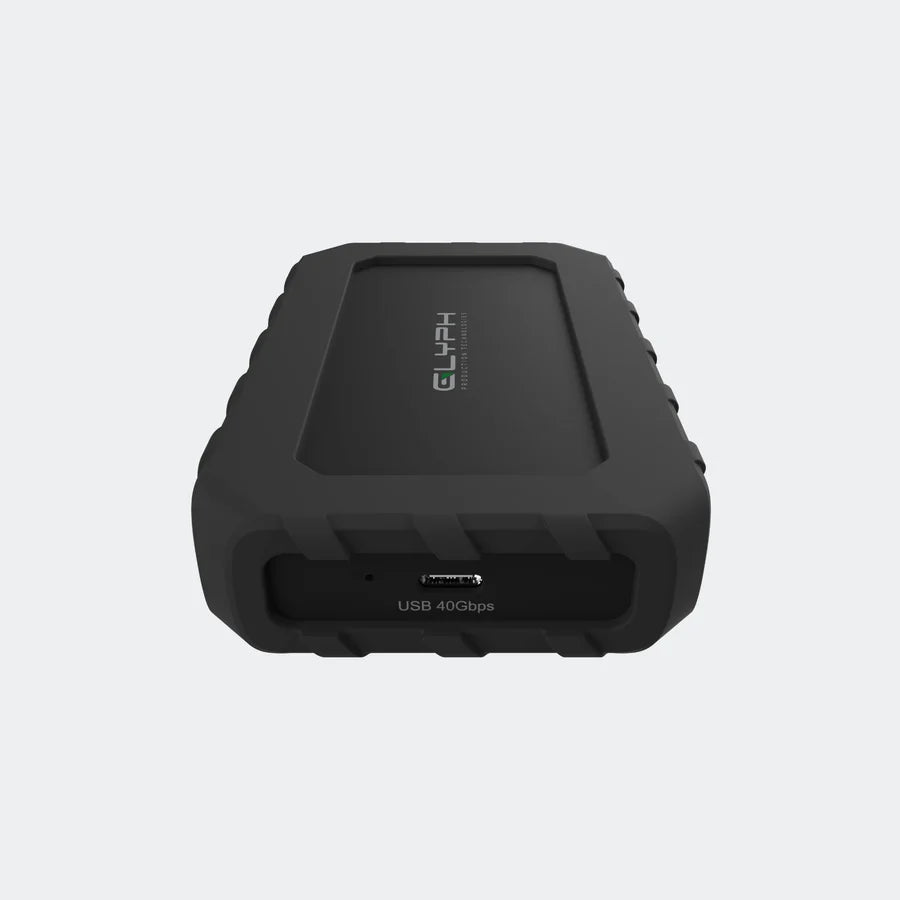

- Connector: USB-C
- Maximum interface bandwidth: 40Gb/s
- Maximum read speed: Up to 4,000 MB/s
- Maximum write speed: Up to 4,000 MB/s
- Power: USB bus powered
- Cooling: Fanless passive heat dissipation
- Mac compatibility: Preformatted for macOS
- Windows compatibility: Compatible after reformatting
- Drive dimensions: 4.5 Ă— 2.8 Ă— 0.8 inches
Warranty
GLYPH 3-2-1 warranty coverage includes:
- Three years of hardware coverage, including the cable
- Two years of Level-1 data recovery
- One year of advance replacement
